Hardware


FlexComp Infiniti System

Our top-of-the-line encoder is the ideal data acquisition and physiological monitoring device for power users. It offers 10 high-speed channels (2048 samples/sec).

Researchers, surface electromyography (SEMG) specialists and ergonomists will appreciate its ability to monitor and record SEMG and displaying it as raw, median frequency, RMS, peak-to-peak, 2D and 3D frequency and power spectrum. Up to four encoders (each using up to 10 channels) can be connected simultaneously to produce the largest possible 'window' into the subject's physiology.

FlexComp Infiniti offers internal, user-activated calibration to ensure that you can always obtain the highest quality signal, without the costly downtime associated with factory re-calibration.

FlexComp Infiniti is a total monitoring and biofeedback system with a wide range of applications in psychology, physiatry, clinical research, physical therapy, primary care, and sports medicine. Compact and easy-to-use in tethered and un-tethered situations, using fiber optic (for real time monitoring) or Compact Flash (for remote data storage) modes, FlexComp Infiniti offers a tremendous range of capabilities and the power to deliver instantaneous analysis of complex data.

When combined with Infiniti software FlexComp Infiniti provides flexible, high-speed processing of high-resolution data and allows clinicians to choose from a full range of user-defined screen configurations for specific applications or client profiles, using mouse or keyboard controls.

Software Information

The BioGraph Infiniti software is created in a modular fashion to ensure you get only what you need and do not fill your computer's memory with unwanted software. With a flick of a dipswitch the FlexComp Infiniti becomes a ten channel ProComp Infiniti with the first two channels sampling at 2048 and the remaining eight at 256. The FlexComp Infiniti system comes with EEG, Physiology, and the DynaMap Suites.

The Developer Tools will allow for high end users to create their own screens, scripts and channel sets. This ultimately provides the customer with the most variety under one system.


ProComp Infiniti System

The ProComp Infiniti is a new 8 channel, multi-modality encoder that has all the power and flexibility you need for real-time, computerized biofeedback and data acquisition in any clinical setting.

The first two sensor channels provide ultimate signal fidelity (2048 samples per second) for viewing RAW EEG, EMG and EKG signals. The remaining six channels (256 samples/sec) can be used with any combination of sensors, including EEG, EKG, RMS EMG, skin conductance, heart rate, blood volume pulse, respiration, goniometry, force, and voltage input.

ProComp Infiniti offers internal, user-activated calibration to ensure that you can always obtain the highest quality signal, without the costly downtime associated with factory re-calibration.

In short, the ProComp Infiniti covers the full range of objective physiological signals used in clinical observation and biofeedback.

Housed in an ergonomically designed case and requiring only a USB port, ProComp Infiniti can be used with any IBM-compatible laptop or desktop PC. What's more, ProComp Infiniti can capture data in real time by connecting directly to the PC via fiber-optic cable, or it can store data on a Compact Flash memory card for uploading later to the PC.

Software Information

The BioGraph Infiniti software is created in a modular fashion to ensure you get only what you need and do not fill your computer's memory with unwanted software. The first two suites from Thought Technology are the EEG and Physiology Suites. They are general Suites which provide you with a variety of screens for different modalities.

The Developer Tools will allow for high end users to create their own screens, scripts and channel sets. This ultimately provides the customer with the most variety under one system.


ProComp5 Infiniti System

ProComp5 Infiniti joins our eight-channel, ProComp Infiniti, our 10 channel FlexComp Infiniti and our 2 channel ProComp2 multi-modality encoders. All combine the power and flexibility you need for real-time, computerized biofeedback and data acquisition in any clinical setting.

ProComp5 Infiniti is housed in an ergonomically-designed case and requires only a USB port to connect to any IBM compatible PC. ProComp5 Infinitiā„¢ has the identical inputs as ProComp Infiniti, but omits the last 3 channels. The first two sensor channels provide ultimate signal fidelity (2048 samples per second) for viewing raw EEG, SEMG, EKG and HR/BVP signals, while the remaining 3 channels sample data at 256 samples/second for slower signals such as respiration, temperature, force, etc. Not only can ProComp5 Infiniti capture data in real time by connecting directly to the PC via its fiber-optic cable, but it can also store data on a Compact Flash memory card for uploading later to the PC, or use optional long-range compact flash module telemetry anytime it is desirable.

Unlike competitive equipment, all channels can be used with any combination of sensors, including EEG, EKG, RMS SEMG, Skin Conductance, Heart Rate, Blood Volume Pulse, Respiration, Goniometer, Force, Inclinometer, Torsiometer and Voltage Input.

"I love Thought Technology's Infiniti System. It's a comprehensive biofeedback system complete with EEG Neurofeedback plus a wide selection of flexible biofeedback modalities to fit any clinician's needs. Its state-of-the-art multimedia capabilities are engaging, effective, and fun!"

Lynda Kirk, MA, LPC, BCIA Senior Fellow, BCIA-EEG Fellow, QEEG-Diplomate, ISNR Past President & Fellow, AAPB Past President

Software Information

The BioGraph Infiniti software is created in a modular fashion to ensure you get only what you need and do not fill your computer's memory with unwanted software. The first two suites from Thought Technology are the EEG and Physiology Suites. They are general Suites which provide you with a variety of screens for different modalities.

The Developer Tools will allow for high end users to create their own screens, scripts and channel sets. This ultimately provides the customer with the most variety under one system.


ProComp2

The ProComp2 is a compact yet powerful 2 channel device that allows clinicians to set up a second clinical system - or to empower their clients by offering them a take-home device that is convenient to wear on a headband or a shirt collar.

The ProComp2 contains a built-in EEG sensor (simply connect an extender cable for EEG monitoring and biofeedback), and it can use any two of the ProComp Infiniti sensors. The ProComp2 system contains all the peripherals to easily connect it to a desktop or laptop IBM-compatible PC.

Benefits for you and your clients

  • Add additional training rooms to your clinic quickly and economically
  • Promote training in the home environment to improve outcomes
  • Enhance long term compliance
  • Includes a built in EEG sensor
  • Monitor peripheral measures as EEG
  • Quality and expert support from Thought Technology

Software Information

Thought Technology is proud to launch two new specialized application suites for BioGraph Infiniti. The EEG Suite and the Physiology Suite take full advantage of the latest functions and features of our powerful multimedia biofeedback software, like DVD movie control, and provide complete control over your entire clinical process, from assessment, to training, to reporting and demonstrating outcome. Both Suites will run with the ProComp Infiniti, ProComp +, ProComp 5 and ProComp 2 encoders and many of the screens and scripts come in versions for one and for two monitor configurations.


MyoTrac Infiniti

MyoTrac Infiniti has been designed to aid in skeletal muscle re-education, rehabilitation and in the treatment of incontinence.

MyoTrac Infiniti systems allow you to measure high-resolution surface electromyography (SEMG) and perform electrical stimulation (STIM) in a large number of configurations.

The MyoTrac Infiniti stands apart from the competition by also combining these two modalities in various ways. It performs among others SEMG-triggered stimulation (ETS). SEMG is used to trigger stimulation, to help patients improve volitional activation of target muscle groups. This combination of three modalities enhances treatment possibilities and eliminates the requirements for multiple devices.

Intended Purpose

  • Biofeedback, Relaxation & Muscle Re-Education purposes
  • Relaxation of muscle spasms
  • Prevention or retardation of disuse atrophy
  • Increasing local blood circulation
  • Maintaining or increasing range of motion
  • Stroke Rehab by Muscle re-education
  • Immediate post-surgical stimulation of calf muscles to prevent venous thrombosis
  • Maintaining or increasing range of motion
  • Acute and ongoing treatment of stress, urge or mixed urinary incontinence and where the following results may improve urinary control: Inhibition of the detruser muscle through reflexive mechanisms.
  • Incontinence treatment for assessing EMG activity of the pelvic floor and accessory muscles such as the abdominal or gluteal muscles

MyoTrac Infiniti is available in three models:

Skeletal Muscle Rehab Incontinence Treatment
MyoTrac Infiniti X X
MyoTrac Infiniti U-Control X
MyoTrac Infiniti Dual SEMG X -

Each model is available in two configurations:

  • Stand-alone
  • Computerized (clinical version)

Embedded Features:

EMG channels STIM channels ETS channels Alternating EMG-STIM channels
MyoTrac Infiniti 2 2 2 2
MyoTrac Infiniti U-Control 2 1 1 1
MyoTrac Infiniti Dual SEMG 2 - - -
  • LCD and touch screen
  • Bar graphs, line graphs, digital read outs
  • Audio-feedback and alarms
  • Auto-thresholds
  • On board memory - saves SEMG statistical summary data
  • Over 50 pre-programmed protocols
  • Patient lock & Rental lock features

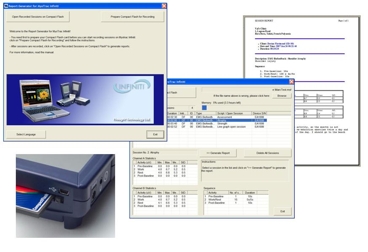

  • Free software to generate reports from sessions recorded into a Compact Flash (click here to download)

Extensive Documentation

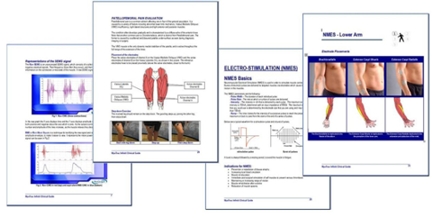

MyoTrac Infiniti has been designed by and for physical therapists. It comes with a clinical guide, explaining the general concepts of the three modalities, the placement of the electrodes and various clinical protocols.

Software Features (Clinical version only)

  • Data stored on compact flash cards with time markers can be transferred to the BioGraph Infiniti database. The compact flash card can also be used if you own a clinical unit and one or several stand-alone units.
  • PC USB interface - allows live recording to BioGraph Infiniti software and powers the unit.
  • Includes a specialized Suite:
MyoTrac Infiniti Clinical Rehab Suite
MyoTrac Infiniti U-Control Clinical Continence Suite
MyoTrac Infiniti Dual SEMG Clinical Rehab Suite

Testimonials

MyoTrac Infiniti allows rehabilitation professionals to access activity - dependent neural plasticity, by providing closed loop re-training of brain function in both children and adults with limitations of spontaneous movement. I expect that it will revolutionize our approach to a wide range of neurological disorders."

Karen E. Pape, MD, FRCPC, FAAP
Medical Director of the TASC Network

"The Myotrac Infiniti is a very user friendly EMG unit that enables clinicians to have access to important information that would otherwise be missed."

Jean-Pierre Dumas M.Sc. PT
McGill University, Canada


MyoTrac

MyoTrac packs extreme sensitivity into a light, compact unit that works for you and your patient in the clinic or home. It is ideal for clinical assessment as well as for self-training. MyoTrac allows total freedom of movement for ambulatory exercises and provides a bright light bar and proportional tone biofeedback. The unit is accurate and reliable. MyoTrac offers three sensitivity ranges for muscle strengthening, rehabilitation or relaxation therapy, and provides stable readings in less than a second.

Features:

  • The highly-sensitive MyoScan active sensor needs no skin preparation
  • Two modes of biofeedback - LED and 5 way tone - provide flexibility
  • 5 way tone feedback includes proportional, above and below threshold and 4-second delayed alarm
  • 13-segment LED bargraph offers expanded range for precise visual feedback
  • Wide and narrow bandpass filters provide precise monitoring of normal and fatiguing muscles and eliminate heart-beat artifact
  • 0 to 2 Volts DC output allows to connect to third party equipment and permits computerized monitoring
  • Low current consumption provides long battery life

A highly sensitive dual channel sEMG biofeedback device, the MyoTrac 3 allows clinicians to monitor two muscle sites simultaneously.

The system includes BioGraph Infiniti Software and one of the following Suite:

Skeletal Muscle Rehab ncontinence Treatment
Rehab Suite X X
Continence Suite X

Our exclusive BioGraph Infiniti Software can be used with any laptop computer for portable monitoring.

Sensors

SEMG Vaginal and Rectal Probes

For single patient, multiple use monitoring of the pelvic floor muscles. These precision sensors feature a vertical electrode configuration to ensure measurement along the direction of the muscle group. The T-bar ensures repeatability of measurement with respect to orientation and depth placement between uses. The small overall size and bulb configuration enable comfortable and secure seating of the sensor in a number of client positions including walking, standing or prone.

Accessories

Tele-Infiniti

Tele-Infiniti is a Bluetooth Class II telemetry unit that attaches to our encoders and transmits data to 10+ meters (30+ feet). Ideal for our small devices such as ProComp2 and MyoTrac3.


U-Control

A sophisticated, yet simple to use, battery-operated unit, U-Control enables patients to self-train with prescribed exercises, at home, to re-educate pelvic muscles for better urinary or fecal control.

Two LEDs cue patients to tense or relax either for 5 or 10 seconds. Patients view their progress on an ascending or descending bargraph scale or 15 LEDs and listen for rising or falling variations in a continuous tone.

U-Control has an adjustable threshold setting to enable health professionals and patients to revise and report on their training programs as they progress.

Patients use a comfortable, reusable vaginal or rectal sensor in combination with simple biofeedback exercises to improve bladder and bowel function by:

  • Holding a steady LED readout or tone.
  • Intensifying muscle contractions above the threshold level
  • Repeating a preset number of exercises
  • Striving for specific LED readings or tones

GSR2

The small, hand-held and self contained GSR 2 is a Galvanic Skin Response monitoring device for home biofeedback. The GSR 2 precisely monitors your stress levels by translating tiny tension-related changes in skin pores into a rising or falling tone. By resting two fingers on the sensing plates you learn to lower the pitch and your stress level.

Features

  • Uses a 9V battery (included)
  • Ergonomically shaped for a most comfortable and natural grip
  • Provides tonal feedback through speaker or earphones
  • Includes: Manual and instructional CD with relaxation exercise
