Sensors

EEG-Z3 Sensor

EEG-Z3 is a pre-amplified electroencephalograph sensor with built in impedance checking and 3 modes of operation: regular EEG mode (2 Hz - 1 kHz), low frequency mode (0.01 Hz - 1 kHz) for evoked potentials and low frequency applications and DC mode (0 Hz - 1 kHz) for slow cortical potentials. Modes can be changed on-the-fly. Also includes DIN input connectors for use with standard EEG electrodes


EEG-Z Sensor

EEG-Z is a pre-amplified electroencephalograph sensor with built in impedance checking. Get the ultimate hook up every time with this sensor as it monitors skin impedance (both the reactive and resistive elements) and sensor connection.


EEG Flex/Pro Sensor

EEG Flex/Pro is identical to the EEG-Z, without the convenience of impedance checking.


TT AV-Sync

TT AV-Sync is a highly accurate time-synchronizing device for making measurements of audio and video events produced by a PC. AV Sync is used in evoked and slow cortical potential protocols, and reaction time testing to provide the ability to make measurements with millisecond accuracy.


EMG MyoScan-Z Sensor

MyoScan-Z is a pre-amplified electromyography sensor with built in impedance sensing. Get the ultimate hook up every time with this sensor as it monitors skin impedance and sensor connection. Signal Input Range 0 -2000 µV, Bandwidth 20 Hz - 500Hz. Used with the ProComp/Procomp5 Infiniti channels A - B or all FlexComp-Infiniti channels.


EMG MyoScan Sensor

EMG MyoScan is a pre-amplified surface electromyography sensor used with the ProComp Infiniti/ProComp5 Infiniti channels A - B or all FlexComp-Infiniti channels for RAW sEMG. Compatible with Triode electrodes or extender cables for wider placement of electrodes. Range of 0 - 2000 µV


EMG MyoScan-Pro Sensor

EMG MyoScan Pro is a pre-amplified surface electro- myography sensor used with the ProComp Infiniti channels C - H for RMS sEMG. Features a range switch in the sensor head to change filter settings between 0 - 400 µV Narrow filter, 0 - 400 µV Wide filter, 0 - 1600 µV Wide filter with 0.1 µV sensitivity. Compatible with Triode electrodes or extender cables for wider placement of electrodes.


EKG Sensor

EKG sensor is a pre-amplified electrocardiograph sensor, for directly measuring heart electrical activity. Connects via extender cables for a single channel hook up.

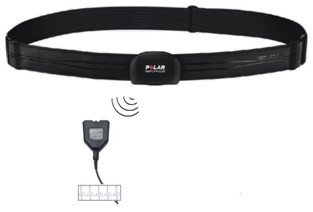

EKG Receiver

The EKG Receiver is a new sensor designed by Thought Technology. It detects the heart rate of a user from the Polar transmitter belt that the user wears around the chest. Polar transmitter belt is not provided by Thought Technology and must be purchased separately. It can be easily purchased at your local major department stores, sports specialty stores, and other stores.

Benefits:
  • Wireless transmission from the transmitter to the EKG receiver, thus no electrodes are needed.
  • Heart beat signal is less prone to movement or EMG artifacts, and is very stable, so you have freedom of movement.
  • Polar transmitter belts are slim and light, easy to position on the chest, fully water resistant, and are designed for all weather conditions.

Blood Volume Pulse Sensor

BVP sensor is a blood volume pulse detection sensor (otherwise known as a PPG sensor) housed in a small finger worn package, to measure heart rate & provide BVP amplitude, BVP waveform, HR and Heart rate variability feedback.


Skin Conductance Sensor

Skin Conductance sensor measures the conductance across the skin, and is normally connected to the fingers or toes. Supplied with two finger bands.


Temperature Sensor

Temperature sensor measures skin surface temperature between 10°C - 45°C (50°F - 115°F ). It is supplied with a self adhering band for easy finger placement.


Respiration Sensor

Respiration Sensor includes a sensitive and repeatable girth sensor using an easy fitting high durability latex rubber band fixed with self-adhering belt for monitoring respiration rate, waveform and amplitude. Can be worn either thoracically or abdominally, over clothing.


Goniometer adapter & Biometrics Goniometer

This adapter connects to Biometrics' torsiometers or single and dual axis goniometers, for monitoring joint movement in multiple planes. Ideal choice for Ergonomics and Gait Analysis.

(Goniometer & Torsiometer to be purchased from Biometrics separately).


Force Sensor Adapter/Foot Switch

This adapter connects to third party Force sensors of varying sensitivity to measure pressure or force, such as Tekscan Flexiforce and Imaging Technologies Uniforce. It can be used to monitor tactile activity, or as a foot switch for Gait Analysis.


Bend Sensor

Bend sensor is small enough to be placed on fingers and wrists to monitor joint motion 180 degrees of flexion. Use sensors back to back to get a 360 degree range.


ForceTrac

ForceTrac is a highly sensitive and accurate sensor capable of monitoring any force perpendicular to its surface through one of 3 attachments. It can be used as an algometer with its rod attachment or as a manual muscle tester with a choice of flat or curved rubber-coated attachment.


InclinoTrac

ForceTrac is a highly sensitive and accurate sensor capable of monitoring any force perpendicular to its surface through one of 3 attachments. It can be used as an algometer with its rod attachment or as a manual muscle tester with a choice of flat or curved rubber-coated attachment.


Dual InclinoTrac

ForceTrac is a highly sensitive and accurate sensor capable of monitoring any force perpendicular to its surface through one of 3 attachments. It can be used as an algometer with its rod attachment or as a manual muscle tester with a choice of flat or curved rubber-coated attachment.
